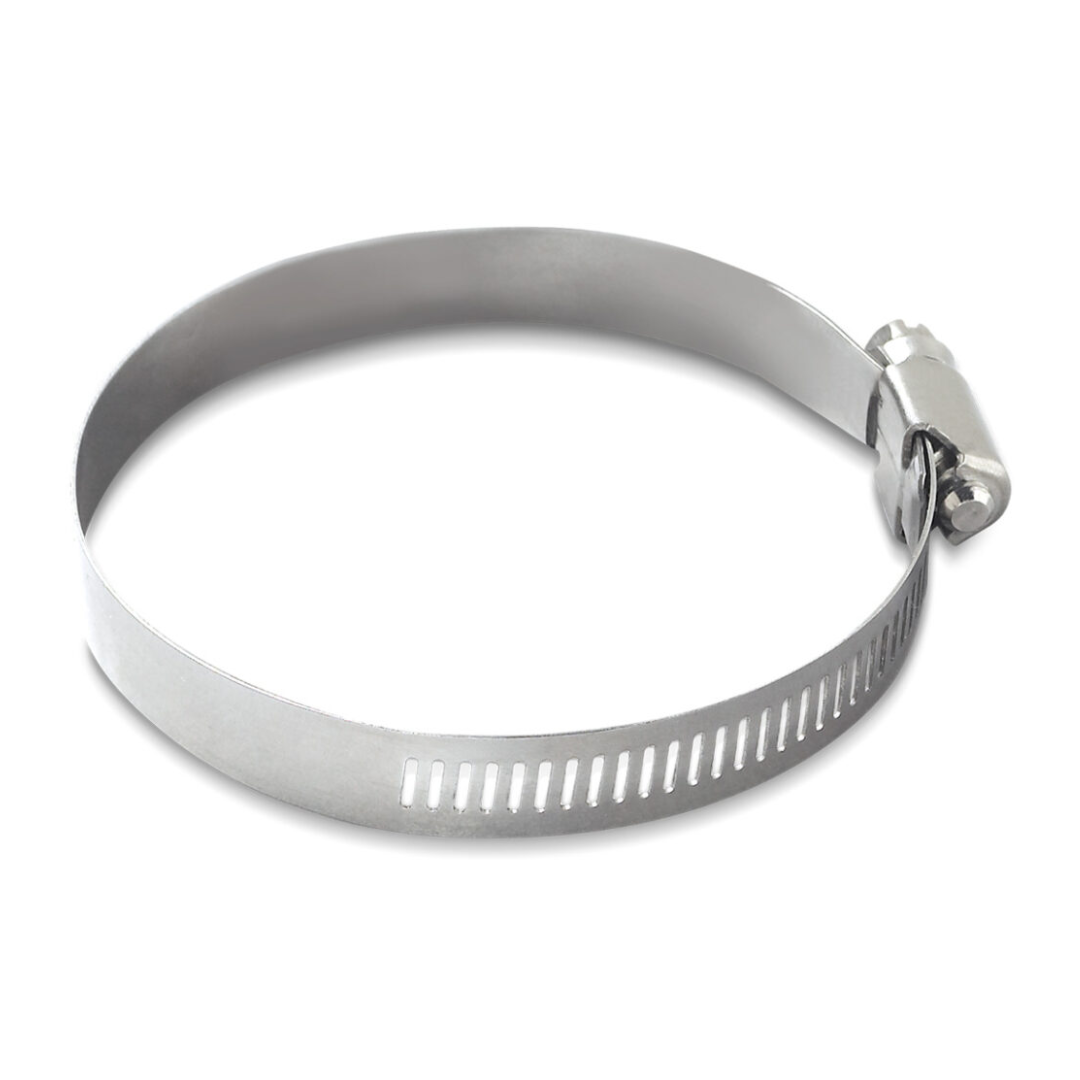

IFE American Style Hose Clamps, 12.7mm (0.50") Band, W4 Stainless Steel – Carton PackPrice from $405.90 to $1,650.00.
A liner version is available, designed with an inner liner to protect hoses and delicate components from damage caused by the band slots.
Ideal for securely mounting signs, flags, small vessels, and filters.
Available in a 1/2" (12.7 mm) bandwidth with a 5/16" (8 mm) screw head.
Material: W4 (all 300 series stainless steel).
Clamps comply with SAE J1508 Type F hose clamp specifications.
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCAS-8-616-W4 | 6-16 | 0.24"-0.63" | 8 | 6 | 1250 | 21 |
| HCAS-8-818-W4 | 8-18 | 0.31"-0.71" | 8 | 6 | 1000 | 18 |
| HCAS-8-1120-W4 | 11-20 | 0.43"-0.79" | 8 | 6 | 1000 | 19 |
| HCAS-8-1323-W4 | 13-23 | 0.51"-0.91" | 8 | 6 | 1000 | 21 |
| HCAS-8-1427-W4 | 14-27 | 0.55"-1.06" | 8 | 6 | 1000 | 22 |
| HCAS-8-1338-W4 | 13-38 | 0.51"-1.5" | 8 | 6 | 1000 | 24 |
A liner version is available, designed with an inner liner to protect hoses and delicate components from damage caused by the band slots.
Ideal for securely mounting signs, flags, small vessels, and filters.
Available in a 1/2" (12.7 mm) bandwidth with a 5/16" (8 mm) screw head.
Material: W4 (all 300 series stainless steel).
Clamps comply with SAE J1508 Type F hose clamp specifications.
Technical Information
| GTSE SKU | Clamping Range (mm) | Clamping Range (in) | Bandwidth (mm) | Screw Head (mm) | Carton Qty | Carton Weight (lbs) |
| HCAS-8-616-W4 | 6-16 | 0.24"-0.63" | 8 | 6 | 1250 | 21 |
| HCAS-8-818-W4 | 8-18 | 0.31"-0.71" | 8 | 6 | 1000 | 18 |
| HCAS-8-1120-W4 | 11-20 | 0.43"-0.79" | 8 | 6 | 1000 | 19 |
| HCAS-8-1323-W4 | 13-23 | 0.51"-0.91" | 8 | 6 | 1000 | 21 |
| HCAS-8-1427-W4 | 14-27 | 0.55"-1.06" | 8 | 6 | 1000 | 22 |
| HCAS-8-1338-W4 | 13-38 | 0.51"-1.5" | 8 | 6 | 1000 | 24 |
